2025 FORD RANGER WHELEN T-SERIES GRILLE BRACKET

These brackets are designed to mount 2 Whelen T-Series light heads behind the grille of a 2025 Ford Ranger

Featuring a design that uses available holes behind the grille to mount the brackets.

Laser cut out 16-gauge steel.

Black powder coat finish.

Designed, tested and installed by EVT-Certified professionals.

Manufactured in the USA.

2025 Ford Ranger T-Series Grille Bracket Kit Includes:

• 2 Ford Ranger T-Series Grille Brackets

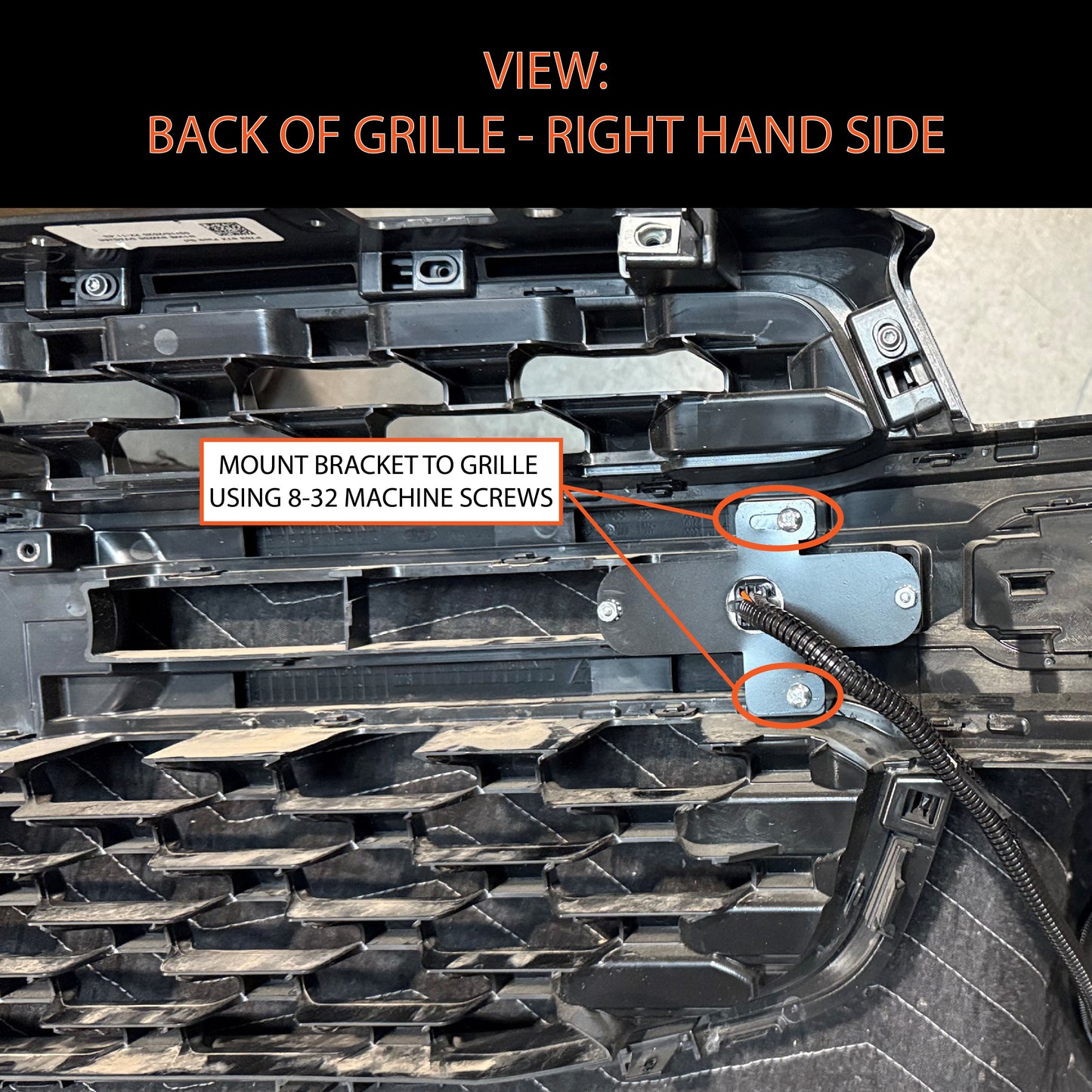

Recommended Installation:

1. Install the LH bracket on the outermost grille slot on the LH side
2. Use an 8-32 tap to thread the available holes in the structure behind the grille
3. Secure the brackets with 8-32 machine screws
4. Repeat step 1-3 for the RH bracket
